UAV-BASED FLIGHT SERVICES AT ITS BEST

SPECIAL UAV MISSIONS

Based on the "HERCULES ONE" and "HERCULES TWO" UAVs Aeroxess is in the position to provide a wide range of flight services for industrial and R&D applications beyond antenna measurements.

Right from the beginning Aeroxess started with the development of own large UAVs, because soon became quiet obvious that the concepts of commercial available multi-rotor drones or UAVs are facing their limits when up-scaling towards larger UAVs to reach longer flight durations at more payload capacities.

The fact that Aeroxess designs, produces, tests and operates their own UAVs is also an excellent prerequisite to customise the HERCULES UAVs for efficient and optimised integration of customer-furnished payloads.

Currently three different HERCULES UAVs are prepared for flight services.

AEROXESS UAV FLEET

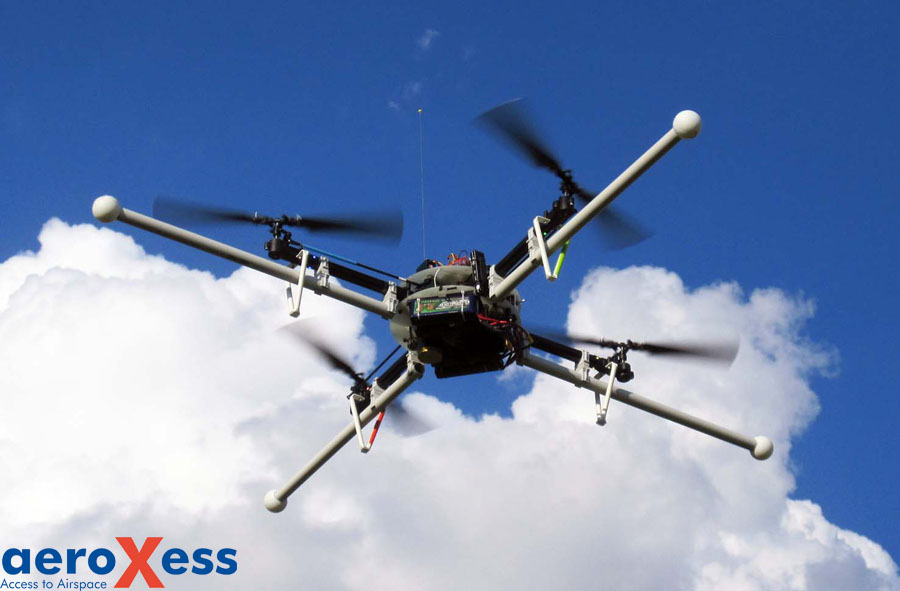

UAV Type HERCULES MICRO
(Battery Version)

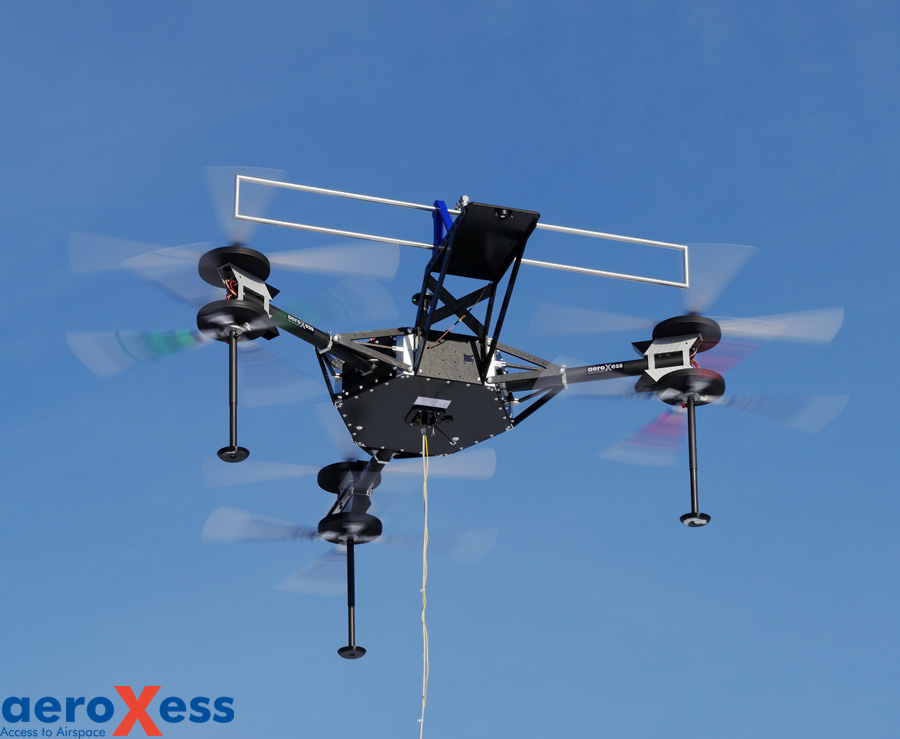

HERCULES ONE-T
(Tethered Version)
HERCULES ONE-H
(Hybrid Version)
Abbreviation N/A H1-T H1-H

Payload (P/L) Capacity 1,0 kg 5.0 kg 5.0 kg
P/L Power Supply 50 W 500 W 500W
Flight Duration 0.1 h theoretically
unlimited
2.0 h @ 5 kg P/L
6.0 h @ 2 kg P/L
Max. Take-Off Weight 3.5 kg 15 kg 20 kg
Overall Dimensions ∅ 1.0 m ∅ 2.1 m ∅ 2.1 m
No. of Rotors (Frame) 4 (X4) 2 x 3 (Y6) 2 x 3 (Y6)
No. of Blades/Rotor 2 4 4
Rotor Diameter 0.38 m 0.85 m 0.85 m
Thrust Control Variable Pitch Variable RPM Variable RPM
Rotor Drives One Single E-Motor
for 4 Rotors
6 E-Motors:
One E-Motor
per Rotor
6 E-Motors:
One E-Motor
per Rotor
Energy Supply Electrical Power
from Batteries
On-Board
Electrical Power
from Ground
Power Supply
Combustion-
Engined Generator
by 2-Cylinder
4-Stroke 80cc
Boxer Engine
Operation Tetherless by
Battery Power
Tether by
Power Cable
Tetherless by
Hybrid Power
Safety Features Auto-Rotation Emergency Modes
at  Loss of up to
2 Rotors and at
Separation of
Ground Cable by
Emergency
Batteries
Emergency Modes
at  Loss of up to
2 Rotors and at
Malfunction of
Combustion Engine
by Emergency
Batteries
Application Technology Model Near Line-Of-Sight
Operations and
Sidewise DUT
Operations
Far Line-Of-Sight
Operations and
Above- and Sidewise
DUT Operations
Max. Flight Height 50 m 50m 300m
Status In Service Flight Test Phase;
In Service:
Sping 2019
Manufacturing
Phase;
In Service:
2020/2021

⁕ NEWS ⁕ NEWS ⁕ NEWS ⁕

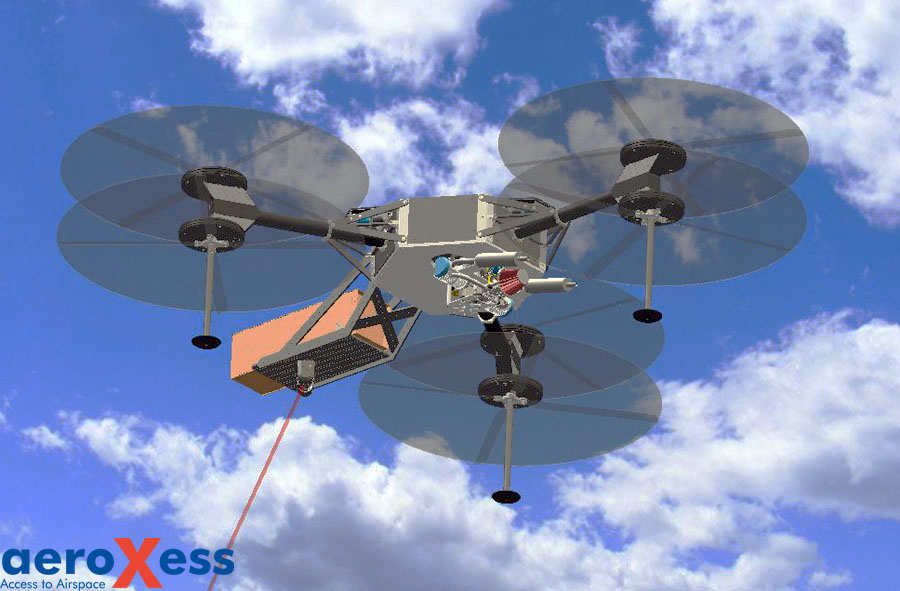

Aeroxess introduces a HYBRID Version of HERCULES ONE UAV



Aeroxess introduces the HERCULES ONE-H (H1-H) UAV, which is a hybrid version of the tethered Hercules ONE-T (H1-T).

A 6 hp 2-cylinder 4-stroke boxer engine runs an electric generator being housed inside the central hexagon compartment of the H1-H.

All combustion related parts are located outside the central compartment of the UAV to avoid thermal impacts and contaminations in the inside of the central compartment.

The H1-H targets applications where measurement operations need to be performed above the measurement object and where hanging cables of the tethered H1-T would collide with the measurement object.

Aspects of hanging cables are not only valid for the power supply cables, but also for the signal- and data transmission cables between UAV and ground. Therefore a tether-free operation of the H1-H presumes that the RF-signal transmission is performed by either a free-space and coherent laser transmission subsystem or by applying phaseless near-field measurement techniques not needing any transmission of RF-reference signals down to ground.

In order to fully cover "Above-DUT Measurements", the H1-H ensures tetherless measurements, long-term flights at sufficient payload capacities.
